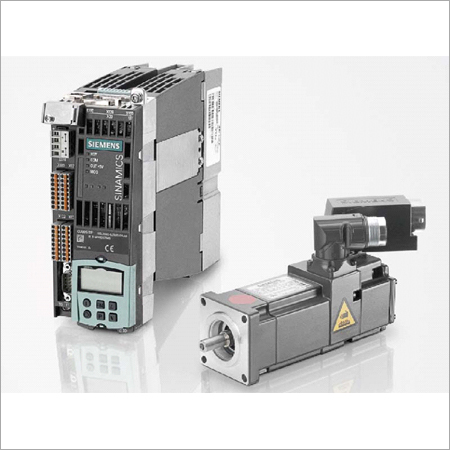

S110 Servo Drives

S110 Servo Drives
S110 Servo Drives
Product Code : S110
Brand Name : Siemens
Product Description

The SINAMICS S110 positioning drive with its built-in basic positioning system is ideal when you need to position machines axes simply, quickly and accurately. While the positioning drive relieves the higher-level machine control system of this task, this flexible converter actually offers much more. As an alternative to a basic positioning system, the positioning drive can be assigned set values as a speed axis using analog input or a field bus interface, such as PROFIBUS, CAN, PROFINET. Additionally, the positioning drive can control a wide range of built-in safety functions with on-board safety terminals without intricate additional circuits. As a modular single-axis drive with servo functionality, the positioning drive covers a power range from 120 W (1 AC 230 V) to 90 kW (3 AC 400 V). It can be used to position both synchronous servomotors and induction motors.

To the top of the page

SINAMICS S110  a brief Summary of its Strengths

·         Easy positioning with synchronous motors and induction motors

·         Built-in safety functions

·         Easy commissioning with electronic type plate in DRIVE CLiQ motors and STARTER

·         Automatic controller optimization with auto-tuning

·         Easy connection to higher-level PLCs using standard communication modules and Totally Integrated Automation (TIA)

To the top of the page

SINAMICS S110  Technical Data

Voltage and performance range:*

0,12 - 0,75 kW at 1AC 200...240 V
0,37 - 90 kW at 3AC 380...480 V

Open-loop control / closed-loop control:

Servo control (speed, position)

* depending on the device version


To the top of the page

SINAMICS S110 Typical Uses

The SINAMICS S110 positioning drive is ideal for the following applications: handling devices, medical devices (such as laying patients prone), feeders and delivery devices, tracking systems, solar panels, tool changers, stacking units, assembly machines and laboratory automation.
